Plot Proportion of Guaranteed Choices by h Rank

Source: R/pdq.R
plot.prop_sc_output.Rd

Plot Proportion of Guaranteed Choices by h Rank

Usage

# S3 method for class 'prop_sc_output'
plot(
  x,
  ...,
  pt_shape = 21,
  pt_fill = "white",
  pt_size = 3,
  title = "Proportion of guaranteed choices by h rank",
  xlab = "h value rank",
  ylab = "Proportion of guaranteed choices"
)

Arguments

x

Output from the prop_sc function

...

Additional arguments passed to ggplot2::geom_point()

pt_shape

Shape of the points in the plot. Default is 21.

pt_fill

Fill color of the points in the plot. Default is "white".

pt_size

Size of the points in the plot. Default is 3.

title

Title of the plot.

xlab

Label for the x-axis. Default is "h value rank".

ylab

Label for the y-axis.

Value

A ggplot object.

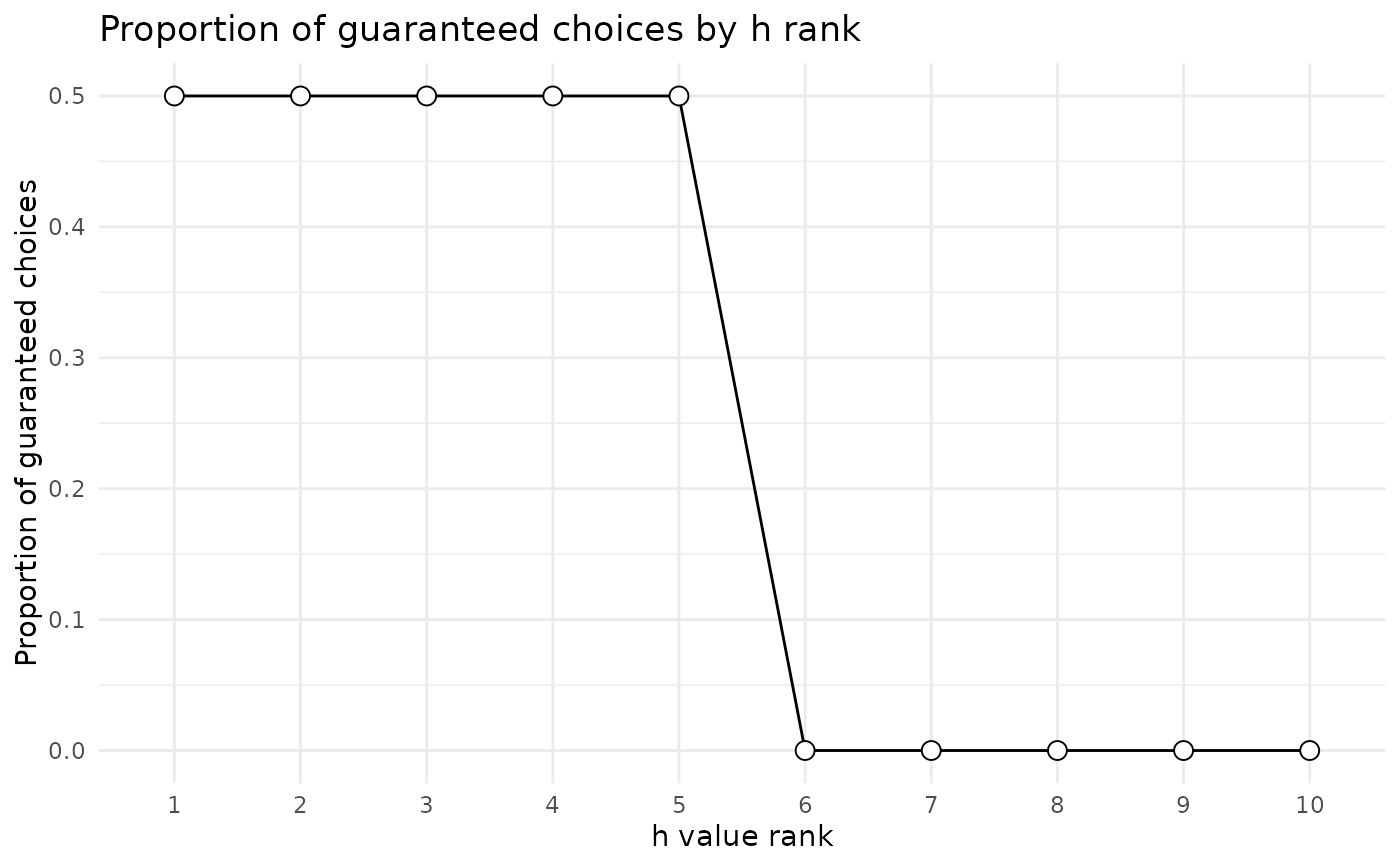

Examples

plot(prop_sc(pdq))
